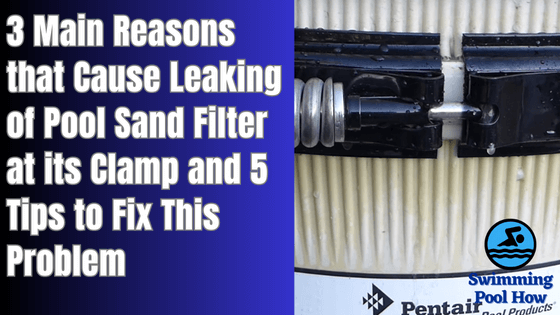

pool sand filter leaking at clamp

Affiliate Disclaimer

As an affiliate, we may earn a commission from qualifying purchases. We get commissions for purchases made through links on this website from Amazon and other third parties.

Pool sand filters are one of the most basic and standard filters used in the residential swimming pools.

As the name suggests, this filter uses sand to remove debris from your pool water.

They are very easy to install and pocket-friendly too.

In this filtration system, a tank full of specialized sand is connected to the pool filtration system.

The dirty pool water is made to pass at a high speed through this special sand.

The sharp edges of the sand collect the debris from the pool water and filtered clean water passes back to the pool.

Here, the clamps play a very important role in a sand filter.

The main purpose of a clamp is to secure various parts of a pool filter tightly.

It helps to prevent it from separating.

A clamp is mostly made from material like plastic or metal.

But the jaws of the clamp are always made of metals.

It is because metallic jaws ensure a strong and durable grip of the clamp.

In sand filters, clamps are either present with the multiport valve (MVP) or with the laterals.

The MVP is tied to the tank with the help of the clamp and is further sealed with the O-rings.

They perform several functions in a sand filter.

Generally, the MVPs have three ports i.e the pump port, the return port, and the waste port.

The function of the pump port is to receive dirty water from the swimming pool.

The return port directs the filtered water back to the pool.

The waste port directs water while performing the backwashing operation.

A leak in the clamp securing the MVP means the connection of MVP with the filter tank has loosened.

If that happens, the overall function of the sand filter can get affected.

Also, as mentioned above, clamps are used to secure the laterals.

In sand filters, you may observe finger-like tubes that are arranged in the shape of a wheel spoke.

These tube-like structures are known as laterals.

Based on the designs, you can find 8 to 10 laterals.

They are fixed at the bottom of a central pipe.

Laterals play a crucial role in the pool sand filtration system.

Each of these laterals has a sieve-like hole.

They allow water to pass through them withholding the sand and the other particles.

So, if the clamp connection, securing the laterals leaks, then sand may flow into your pool water.

Hence, the overall performance of the sand filter can get disrupted.

Thus, from the above discussion, you can understand how important a clamp connection is in a sand filter.

Now let us understand, why a clamp of your pool sand filter leaks and what can be done to fix this leak from the solutions provided below.

3 Main Reasons Why Pool Sand Filter Leaks at the Clamp

If your pool sand filter is leaking at the clamp, there can be 3 main reasons that could cause this leakage.

Those reasons are mentioned as follows.

Reason 1: The Clamp Connection is Very Loose

While operating on a day-to-day basis, the grip of the clamp may get loosened due to our ignorance.

In that case, your sand filter has a leaking clamp.

So, whenever you observe a leak at the clamp, the first thing to check is whether the clamp is tight enough or not.

Reason 2: Presence of Debris in the O-rings

O-rings seal the clamp band to the base of the surface on which it is fixed.

Sometimes, particles like sand, dirt, and debris may enter these O-rings.

After that, it makes the connection of the clamp band weaker.

This may cause a leak in the clamp later on.

Reason 3: Filter Clamp Bolts Get Stripped

Generally in a pool filter, a circular-shaped clamp also known as a marman clamp is used.

They are usually like a band with a gap in between them.

This gap is fitted with a bolt that controls how strong or loose the grip of the clamp would be.

Sometimes due to reasons like vibration and shock, differences in thermal expansion of materials, etc, the bolt gets stripped.

If that happens, the grip of the clamp band becomes loose and the sand pool filter starts leaking at the clamp.

I recommend watching the following short video to understand these main reasons more vividly and clearly.

Recommended Articles for You:

5 Tips to Reduce High Pressure at Pool Pump System

4 Reasons Why Sand Filter Leaks at its Collar

4 Reasons that Cause Leakage of the Sand Filter from its Top

3 Reasons Why Pool Filter’s Clamp Bolts are Stripped

5 Remedies to Fix a Leaking Pool Sand Filter Clamp

Depending on the cause of the leakage, the method of fixing the leaking clamp of the sand filter may vary.

So, whenever your pool filter clamp leaks, you need to first find the root cause of the leakage.

Once you know the cause, repair becomes easy.

I have provided 5 solutions to fix a leaking clamp of your sand pool filter as follows.

Solution 1: Tighten the Loose Clamp

If the leakage is caused due to a loose clamp connection then you first need to carefully remove the clamp and fix it more securely.

After tightening the clamp connection, check if the problem is fixed or not.

You must do it before using the filter again.

Solution 2: Lubricate O-Rings Properly

In case of the presence of debris in the O-rings, You need to remove them carefully.

Then clean them and lubricate the O- rings with a silicone based lubricant before sealing them again.

Solution 3: Use Rubber Mallet for Tightening the Connection

If the problem still persists, then you need to use a rubber mallet and tap it around the circumference of the sand filter.

Now tighten the connection a little.

This will help you to minimize the leaking clamp issue.

Solution 4: Replace the Clamp Assembly if Needed

If the leakage is caused due to a stripped bolt, in that case, you have to replace the clamp assembly.

You have to know that every pool filter model has a specific clamp fitting.

So, before purchasing the clamp assembly; make sure that it is compatible with your filter model.

Solution 5: Use Adhesive Patches to Fill the Gaps

While fixing the new clamp assembly you must be careful not to leave any gap between the springs.

Also, by using washers and adhesive patches, you can prevent the clamp bolts from getting stripped in the future.

I also recommend watching the following video to understand how you can tighten the clamp assembly in the right manner.
